Magnetic equipment

KW Supply Magneetsystemen designs, builds and installs magnet installations for all types of fixed and mobile cranes and handling cranes.

In addition to series production of magnet installations and magnets for mobile handling machines KW Supply Magneetsystemen builds customised magnet installations and magnets, so a maximum result is achieved instead of an average solution from the general magnets available in the brochure.

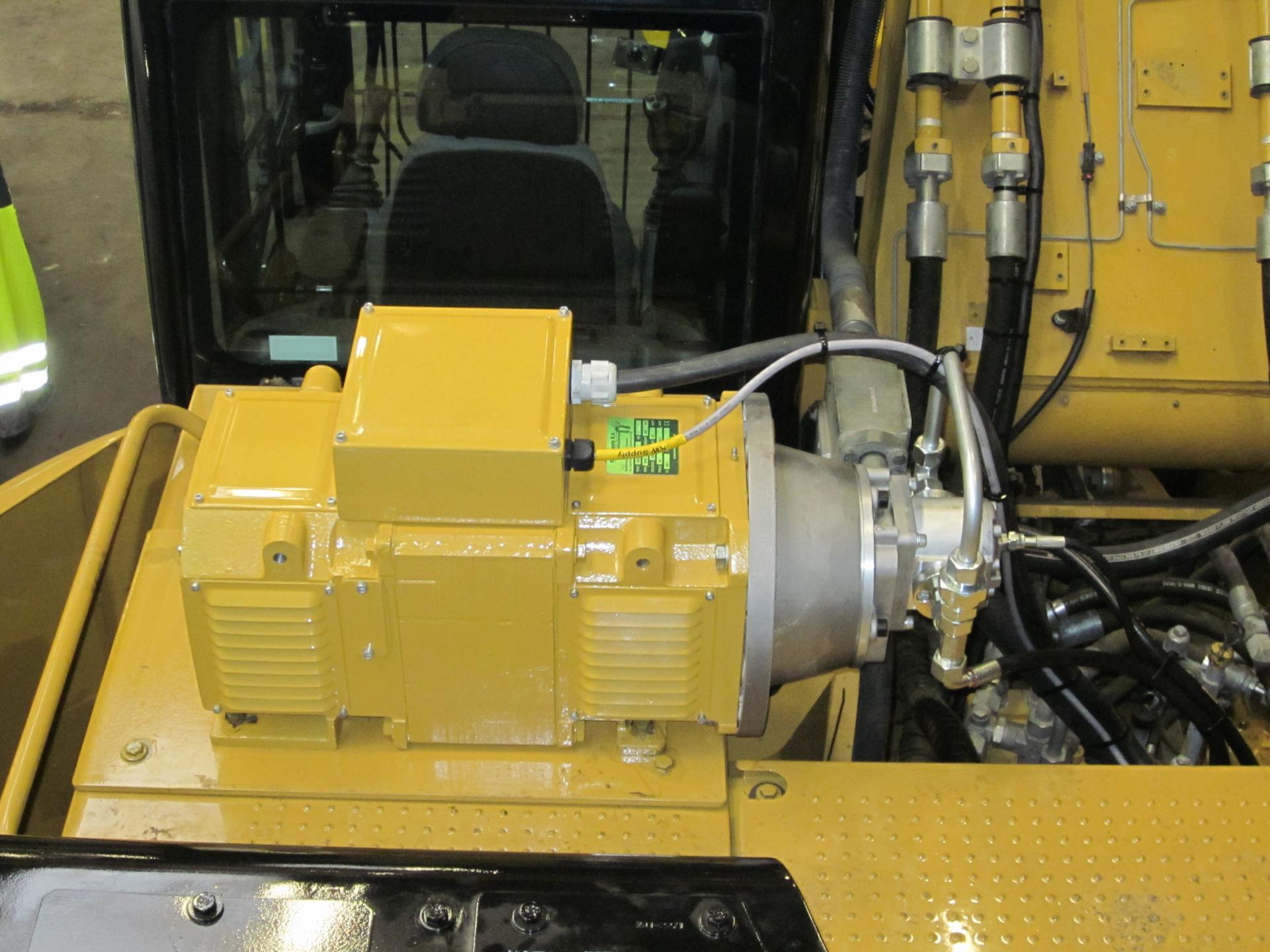

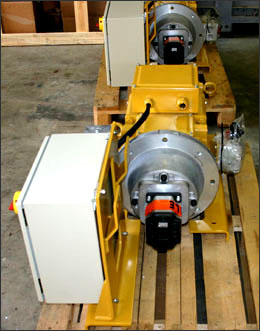

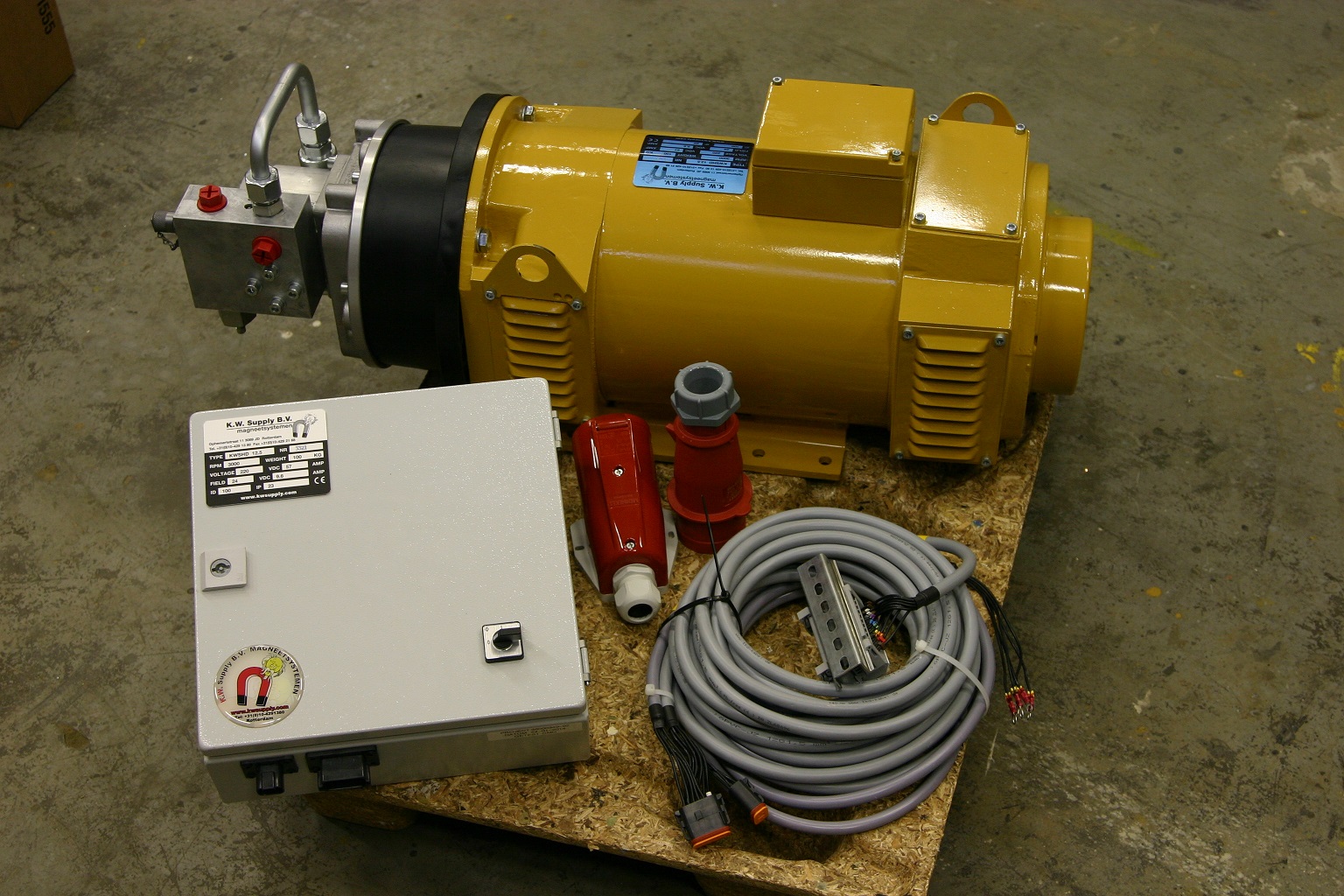

These magnet systems are designed with a steel original DC (direct current) magnet generator and have a 100 % 24/ 7 duty cycle. The boost system used gives the existing magnet approx. 30% more handling capacity.

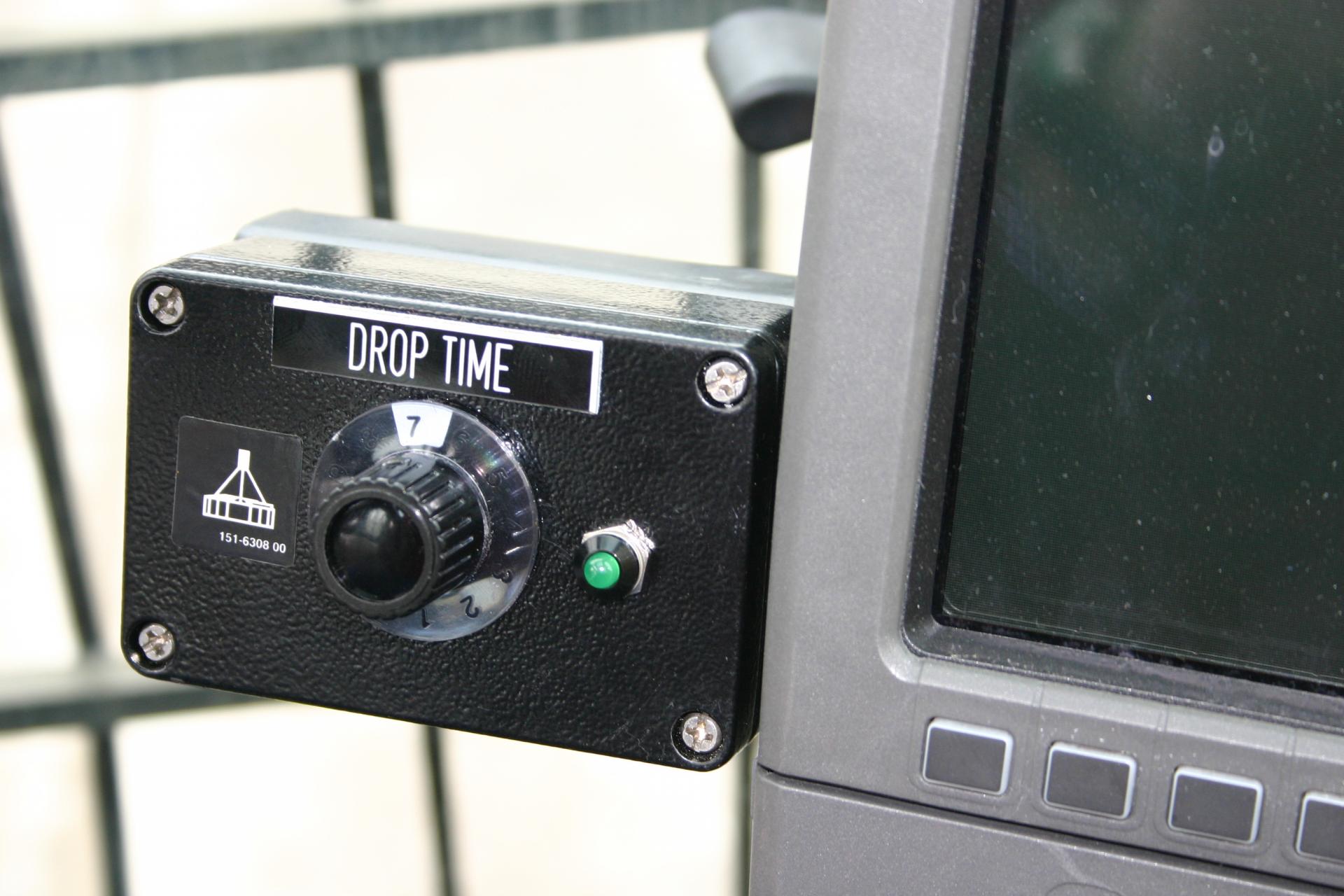

A drop timer is installed in the machine cab to set the demagnetisation time for quickly and cleanly discharging all types of material (scrap).

The magnet system is of compact design and the electric control cabinet is placed in the machine, which ensures safety.

The magnet systems of type KWSHD 12.5, 15, 20, 25, 33 kW are also available in ‘Solid State’.

A CE declaration is issued for all our magnet systems.

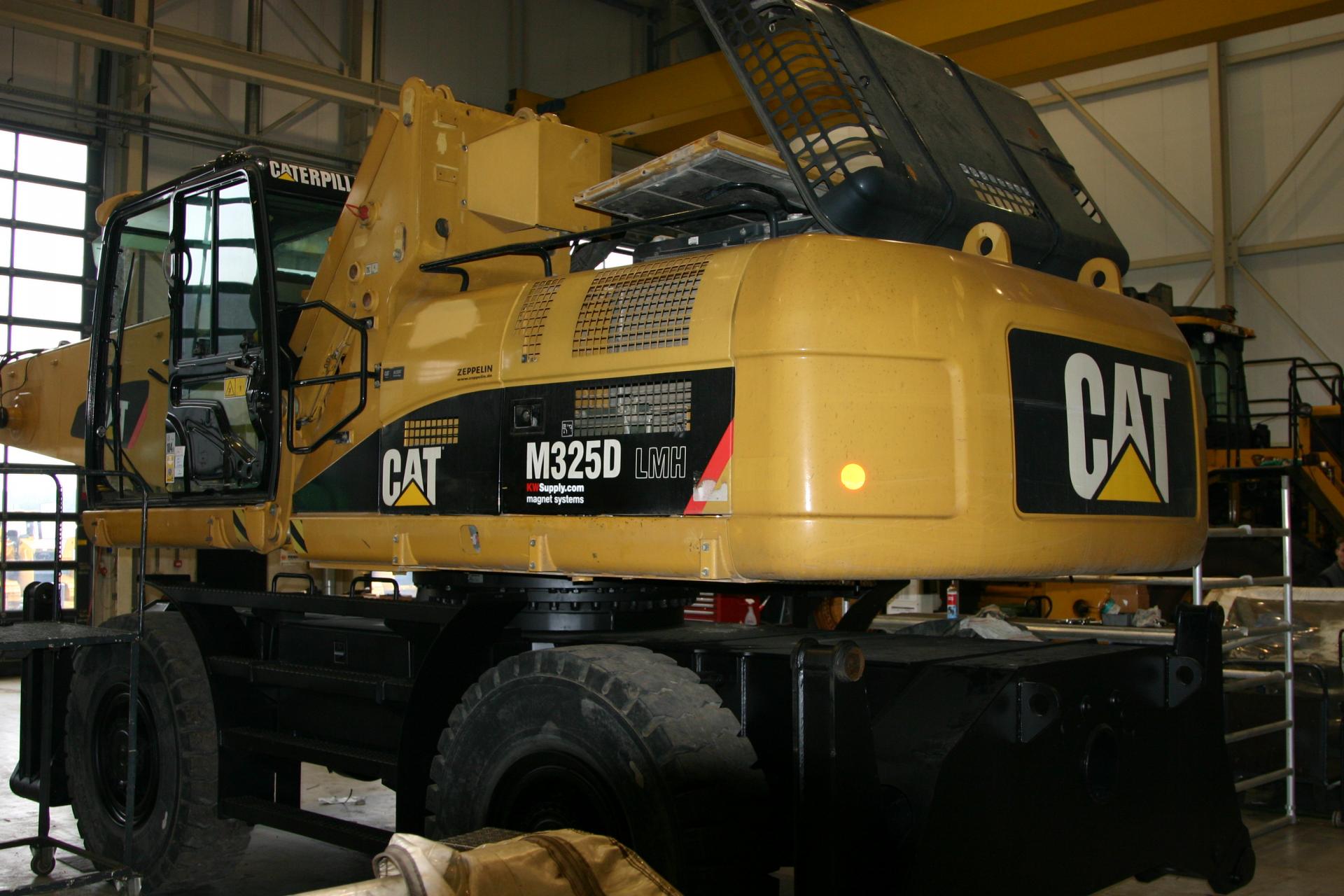

You can find installations from KW Supply Magneetsystemen installed on the following machines by the factory, importer, dealer and end user:

  • Caterpillar
  • Liebherr
  • Volvo
  • Atlas
  • Fuchs
  • O&K
  • Hitachi
  • Komatsu,
  • Hyundai
  • Sobemai
  • Samsung
  • Manitowoc
  • American
  • Link Belt.
